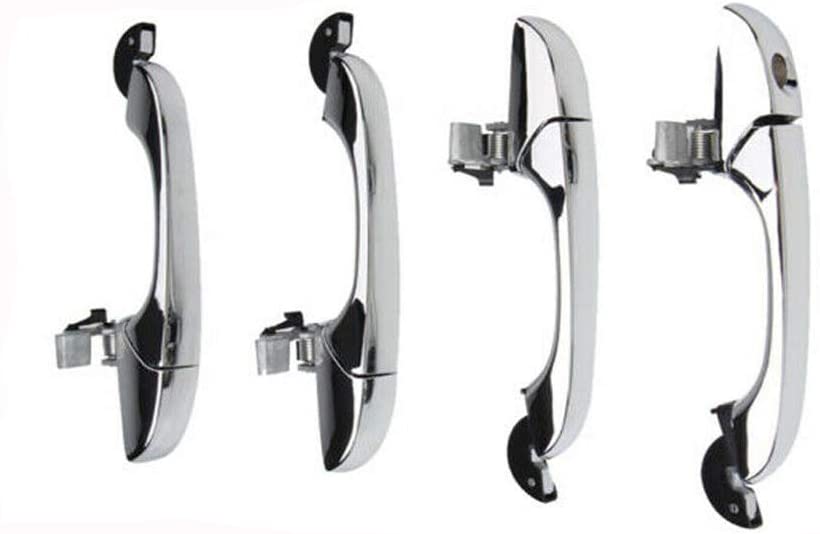

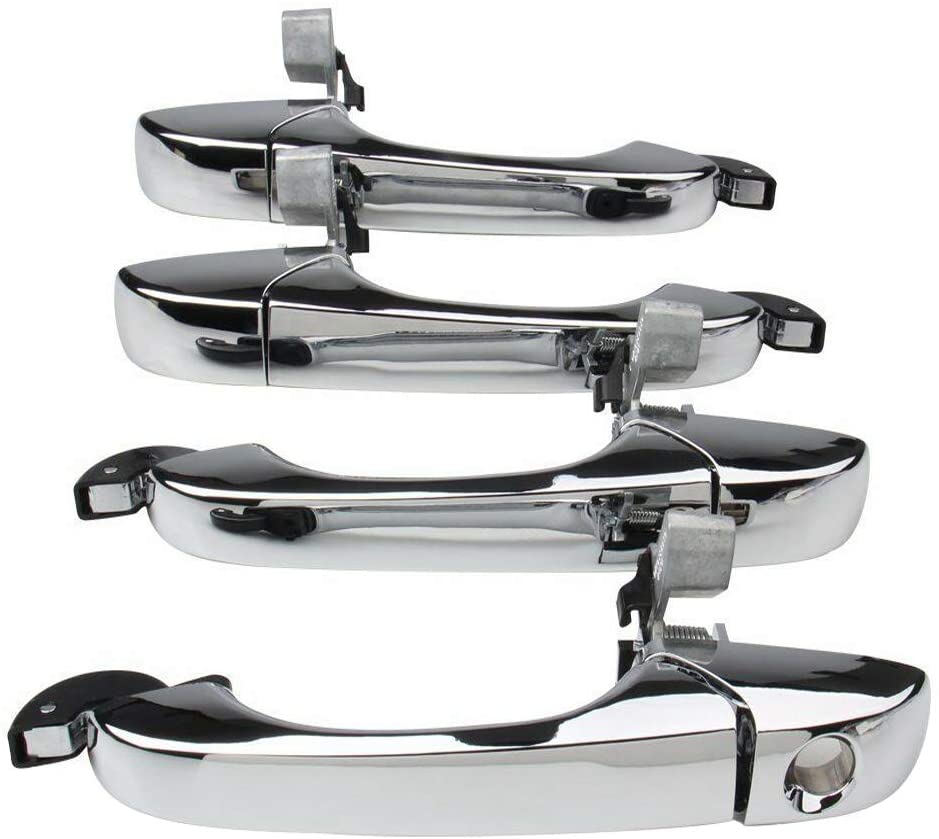

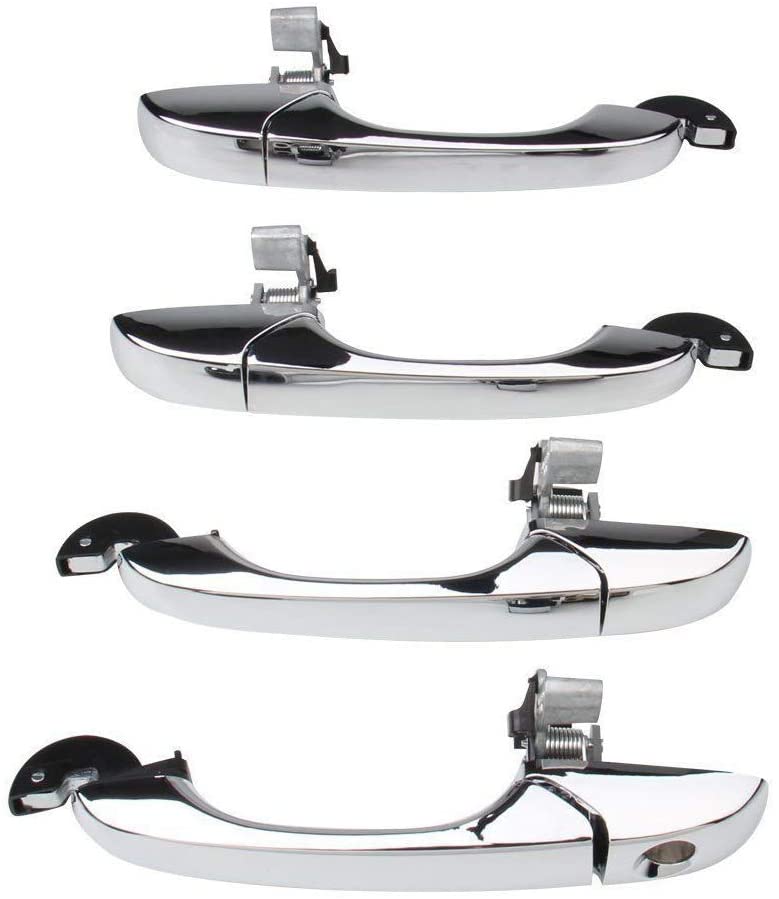

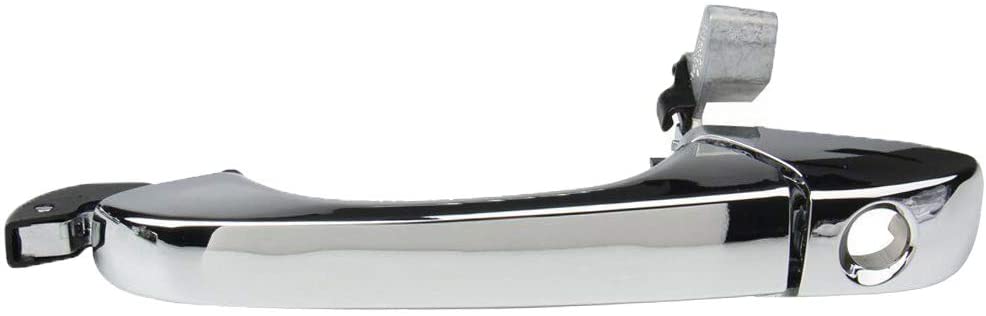

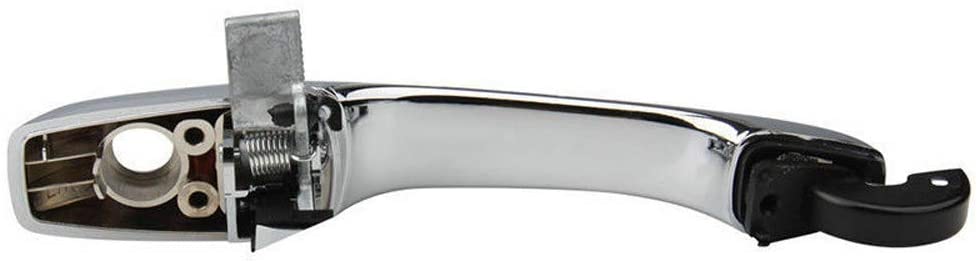

JADODE For Chrysler 300 300C Dodge Magnum Charger Outside Door Handle Chrome 4 Piece
Free Shipping
FREE Standard Shipping | Located in: United States
Returns
30 days returns | Seller pays for return shipping
- Material:Plastic
- Type:Door Handle
- Placement on Vehicle: Left, Right, Front, Rear Side
- Primary Color: Chrome
- Surface Finish:Chrome
- Replaces OEM Part Number: 4589009AH , 4589009AD , 4589009AG , 5065800AE , 5065800AG , 5065801AE , 5065801AG
- Interchange Part Number: 5065801AG, 80609, CH-3300M-RL, 735-6710, 5065800AH,5065800AG,80607, 4589009AH,4589009AD,80608, 5065800AE, 5065800AG, 5065801AE
- Manufacturer Part Number: 4589009AH , 4589009AD , 4589009AG
Fitment
- 2005 - 2010 Chrysler 300 / 300C
- 2005 - 2008 Dodge Magnum
- 2007 Dodge Charger
- Pry out the trim piece inside the door handle
- Remove the Phillips screw behind the handle
- Remove the tan circle clips by pressing in the center and prying out the clip
- Remove the four Phillips head screws on the bottom of the panel
- Pry out the panel below the door pull
- Pry out the door panel with a door panel clip tool or putty knife
- Release the door handle cable by popping the clip, rotating the handle, and popping the hook out
- Disconnect the window switch wiring harnesses
- Pop out the wire harness retainers
- Unplug the courtesy light and its wire retainers
- Lift the door panel up and off
- Disconnect the connectors on the door control module
- Pry out the plastic clips on the module
- Pry off the wire harness retainers
- Pry off the adhesive on the weathershield
- Release the lock and latch rod clips
- Remove the two 8mm bolts from the door handle
- Remove the door lock cylinder
- Remove the door handle
- Insert the door handle into the door, starting with the front
- Tighten the 8mm screw to the door handle
- Insert the door lock cylinder into the handle
- Tighten the 8mm bolt to the cylinder
- Connect the lock and latch rod clips
- Connect the wire harness retainers
- Press the module into the door
- Connect the connectors to the module
- Connect the courtesy light
- Clip in the wire harness retainers
- Connect the window switch wiring harnesses
- Insert the latch rod into the door handle
- Slide the clip over the latch rod
- Lift the panel up over the door lock
- Press the panel into place
- Press the clips into the door panel
- Tighten the four Phillips screws to the bottom of the panel
- Tighten the Phillips screws beneath the door pull
- Tighten the Phillips screw into the door handle
- Press on the trim buttons
- Please allow 1-3mm differs due to manual measurement.
- Due to the different display and different light, the picture may not reflect the actual color of the item. Thanks for your understanding.
